Zacens
WAGON

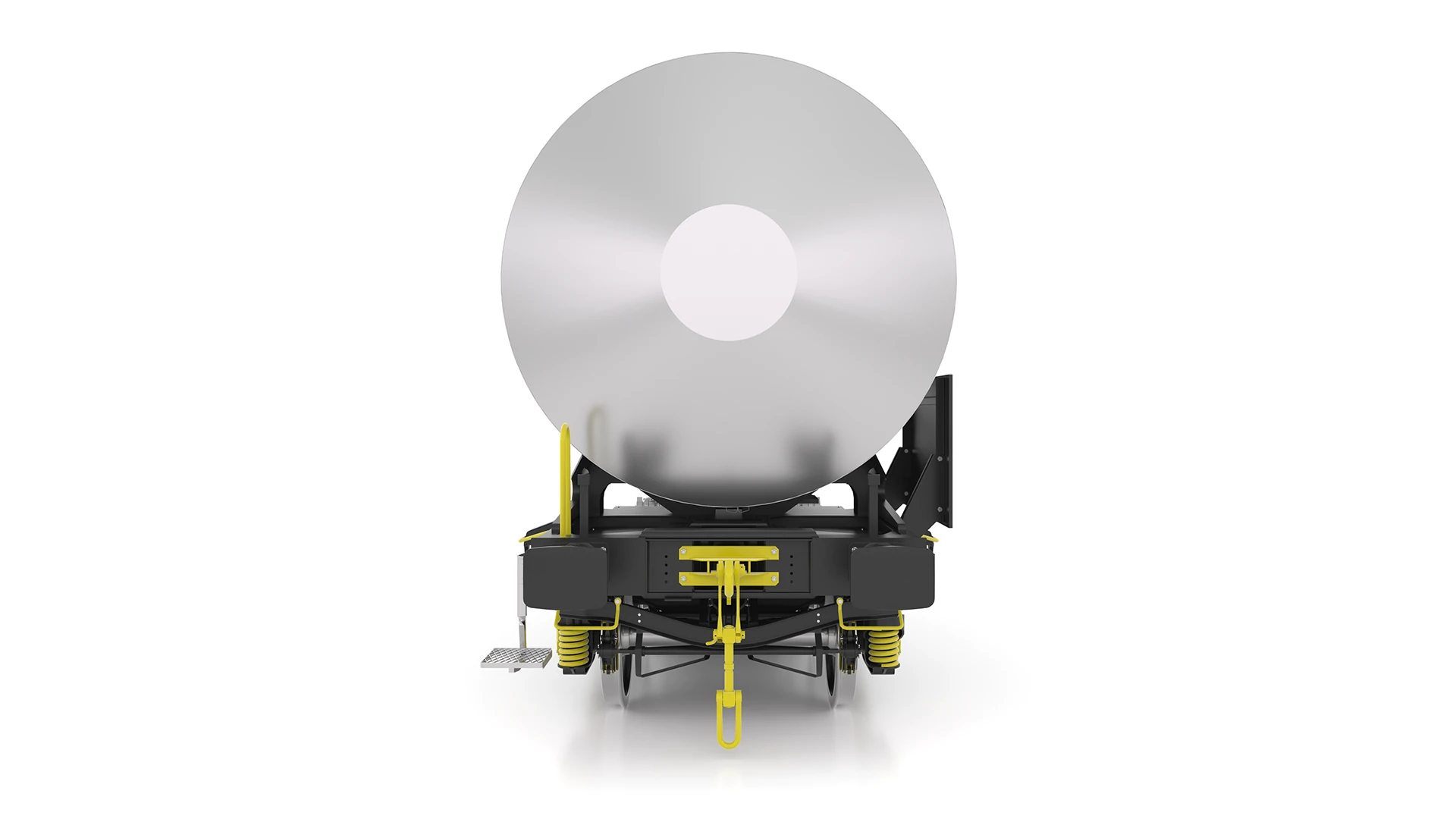

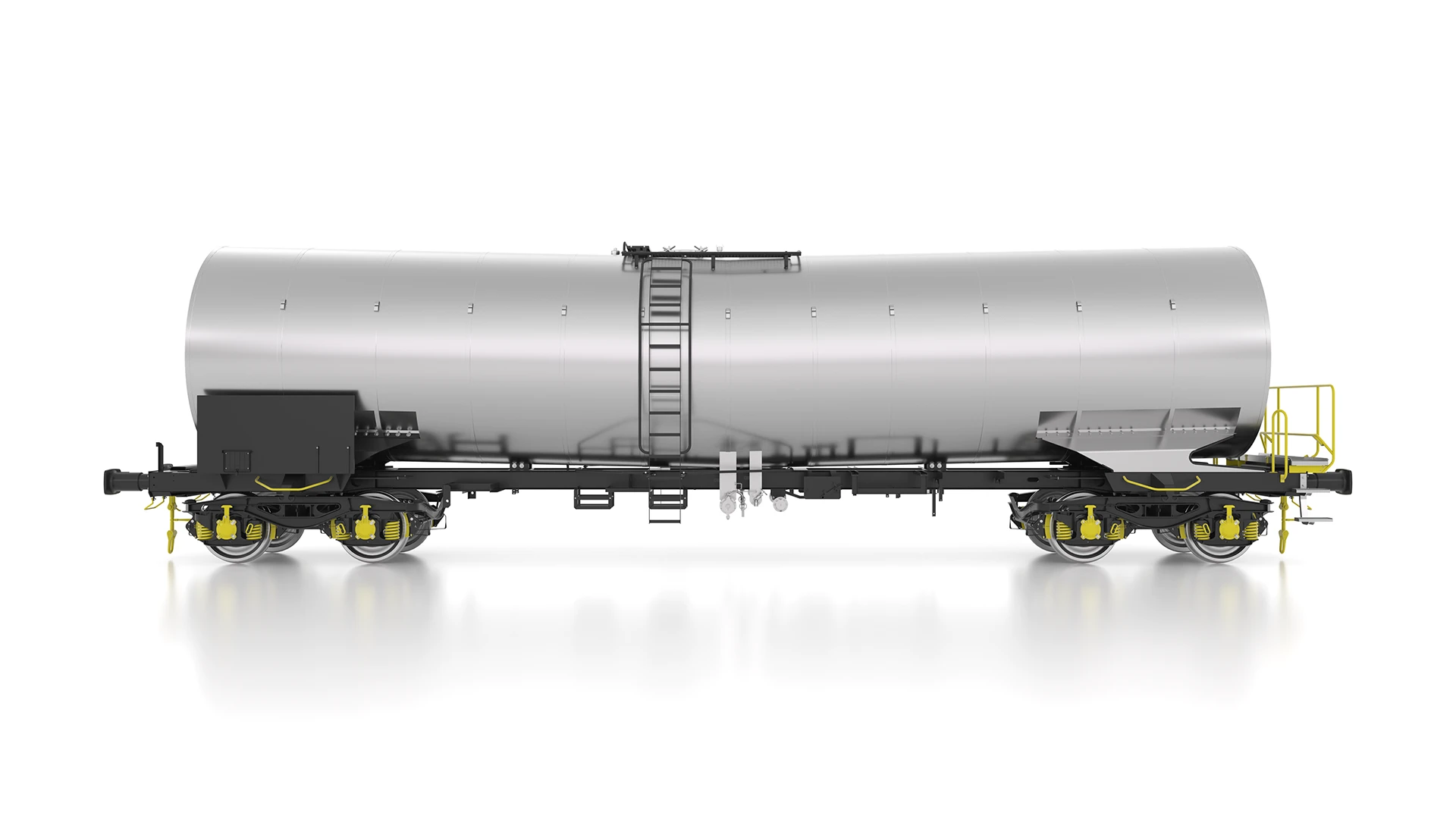

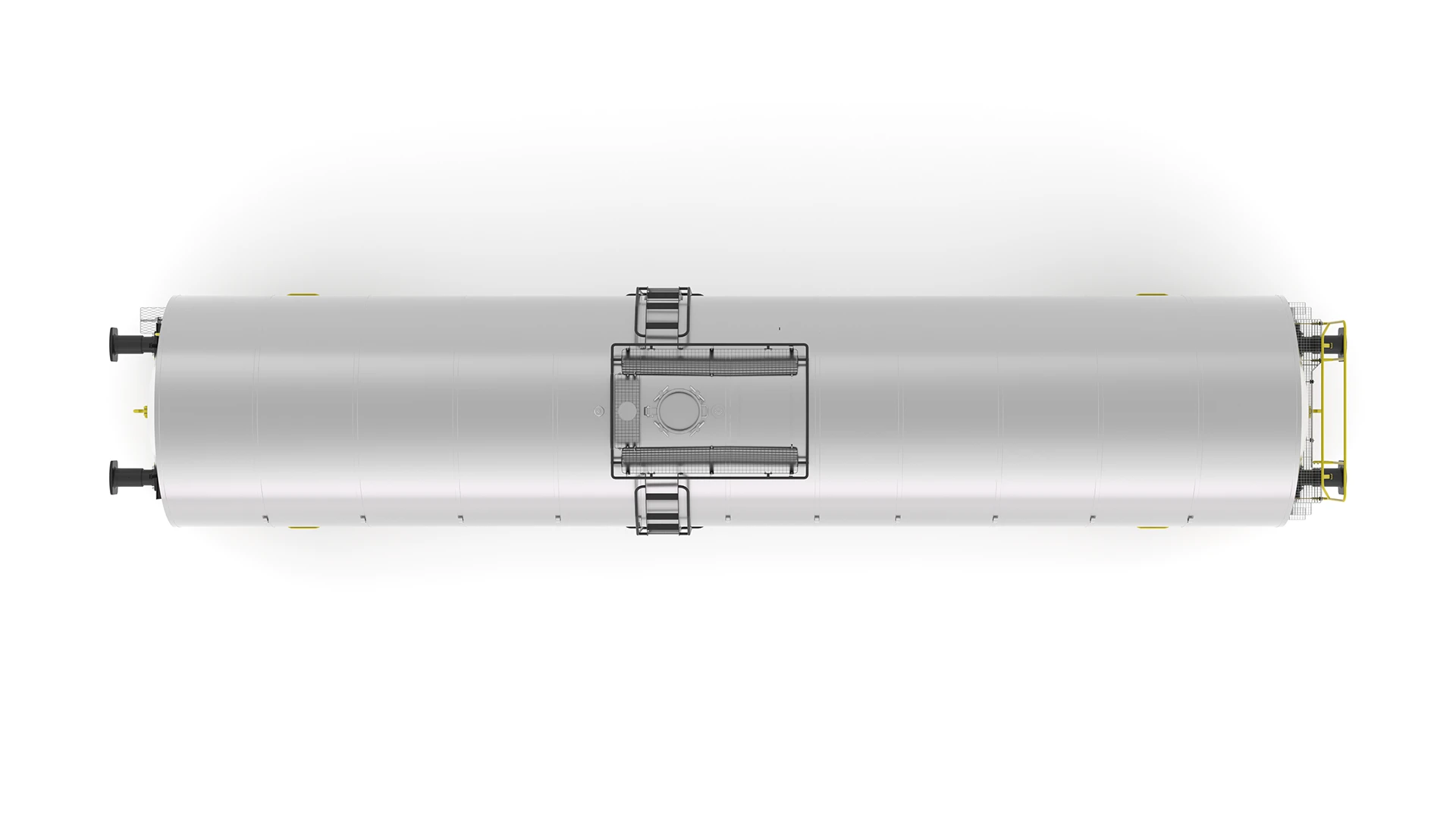

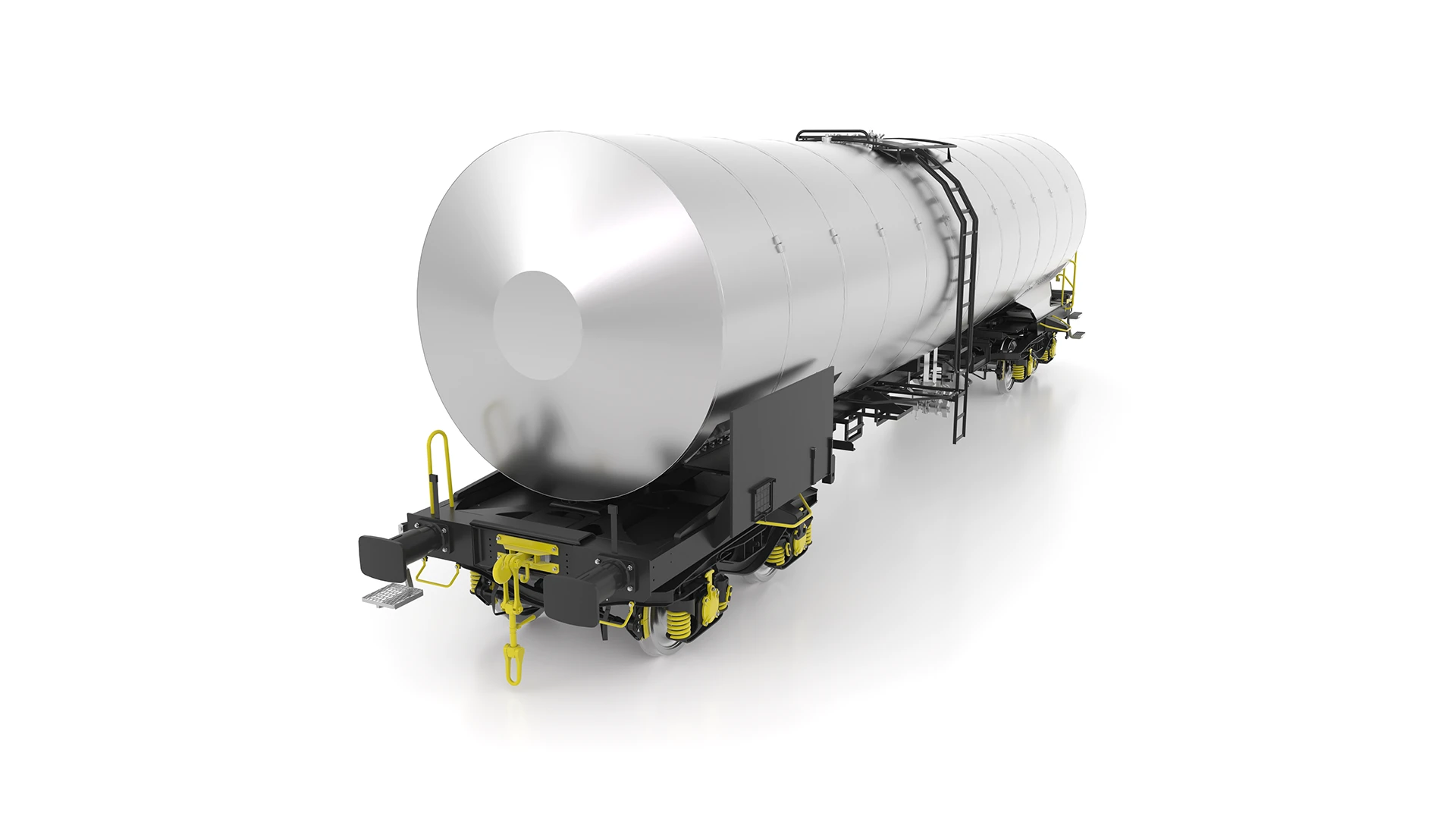

Zacens 78 m³ type tank wagon is designed for the transportation of petroleum products, crude oil, bitumen, tar and asphalt. Isolated tank body has equipment for steam heating from outside. Wagon equipped with 4 axle and is suitable for 100 km/h speed regime. The wagon meets the requirements of TSI WAG, EN and UIC standards.
TECHNICAL FEATURES
| Type standard design | Zacens |
|---|---|
| Tare | 24,5 t ± 2% |
| Axle Load | 22,5 t |
| Maximum Load | 65,5 t |
| Track Gauge | 1.435 mm |
| Length buffer to buffer | 16.240 mm |
| Distance between bogie pivots | 11.200 mm |
| Chassis length | 15.000 mm |
| Wagon height | 4.270 mm |
| Wagon Width | 3.086 mm |
| Loading Volume | 78m³ |
| Tank Type | L4BH |
| Outside diameter of the vessel | 2.700 mm |
| Outside length of the vessel | 14.165 mm |
| The inclina on of the tank towards the middle | 1,2° |
| Design pressure | 10 bar |
| Max operating pressure | 3 bar |
| External overpressure | 0,21 bar |
| Working temperature | -20 / +190°C |
| Place of heating system | Dışarıdan |
| Insulation Material | Taş yünü 100mm |
| Minimal curve radius (Single vagon) | R 35 m |
| Brake system | Classic Brake System |
| Brake Configuration | KEf-GP-A(K) / Knorr- Bremse |
| Bogie Type | Y25Ls(s)d1-K |
| Wheelset | BA 303 (25 t) veya ULT (25 t) |
| Wheel Diameter | 920 mm |
| Bogie Wheelbase | 1800 mm |
| Gauge | G1 |
| International usability | TEN-GE |
| Buffers type | Cat A 105 mm 35kJ (EN 15551) |
| Buffers type | 1500 kN (EN 15566) |
| Draw hook | 1500 kN (EN 15566) |
| Screw coupler | 1350 kN (EN 15566) |
HIGH PERFORMANCE
IN EUROPEAN STANDARDS
Designed for maximum safety and durability, our head beam bogie system delivers best-in-class performance in heavy-duty transport with 22.5 tonnes of axle pressure.
LONG LASTING DESIGN
HIGH PAYLOAD CAPACITY
UIC AND TSI CERTIFIED
STANDARD LINE WIDTH
LOW MAINTENANCE COST
