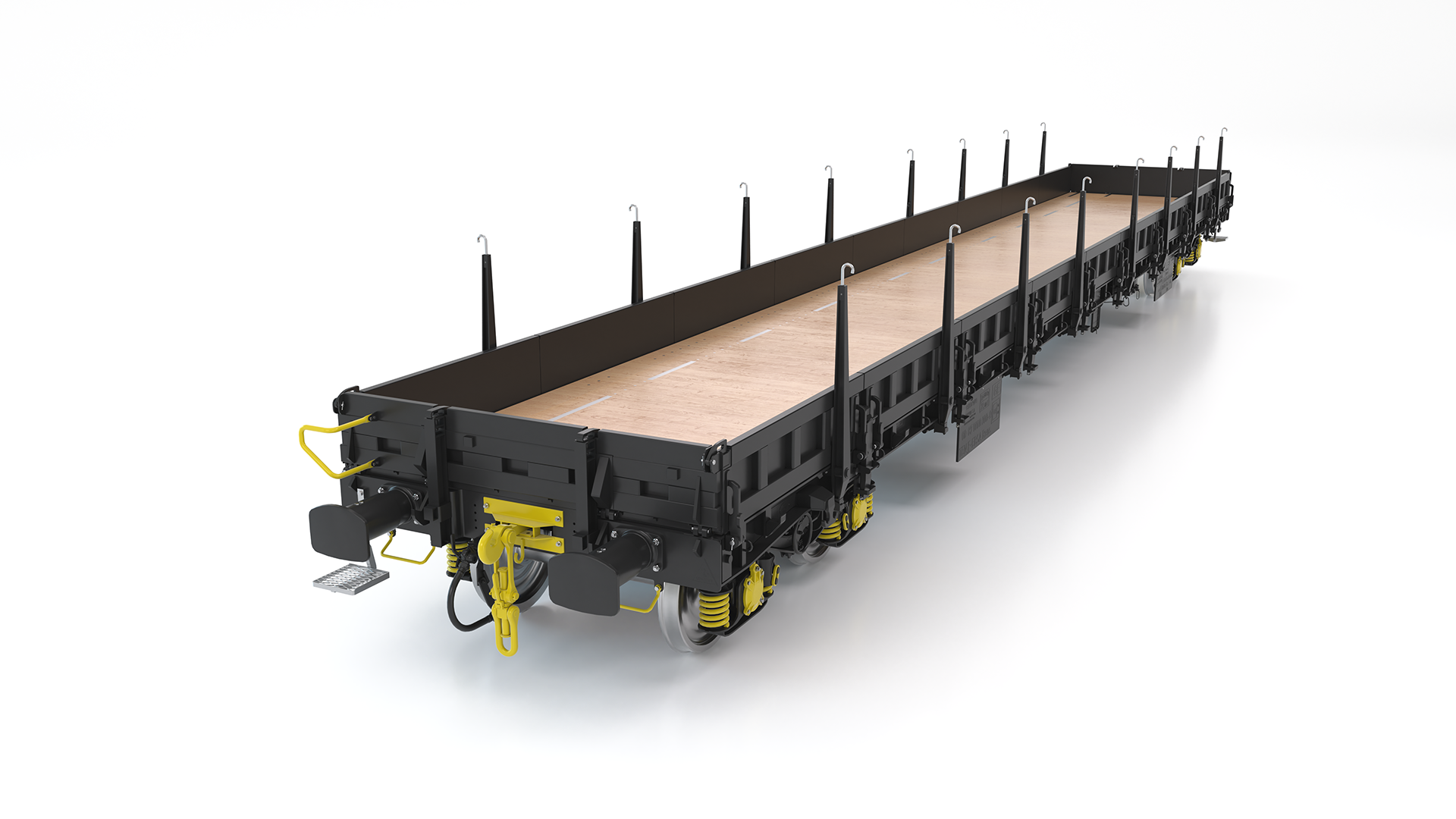

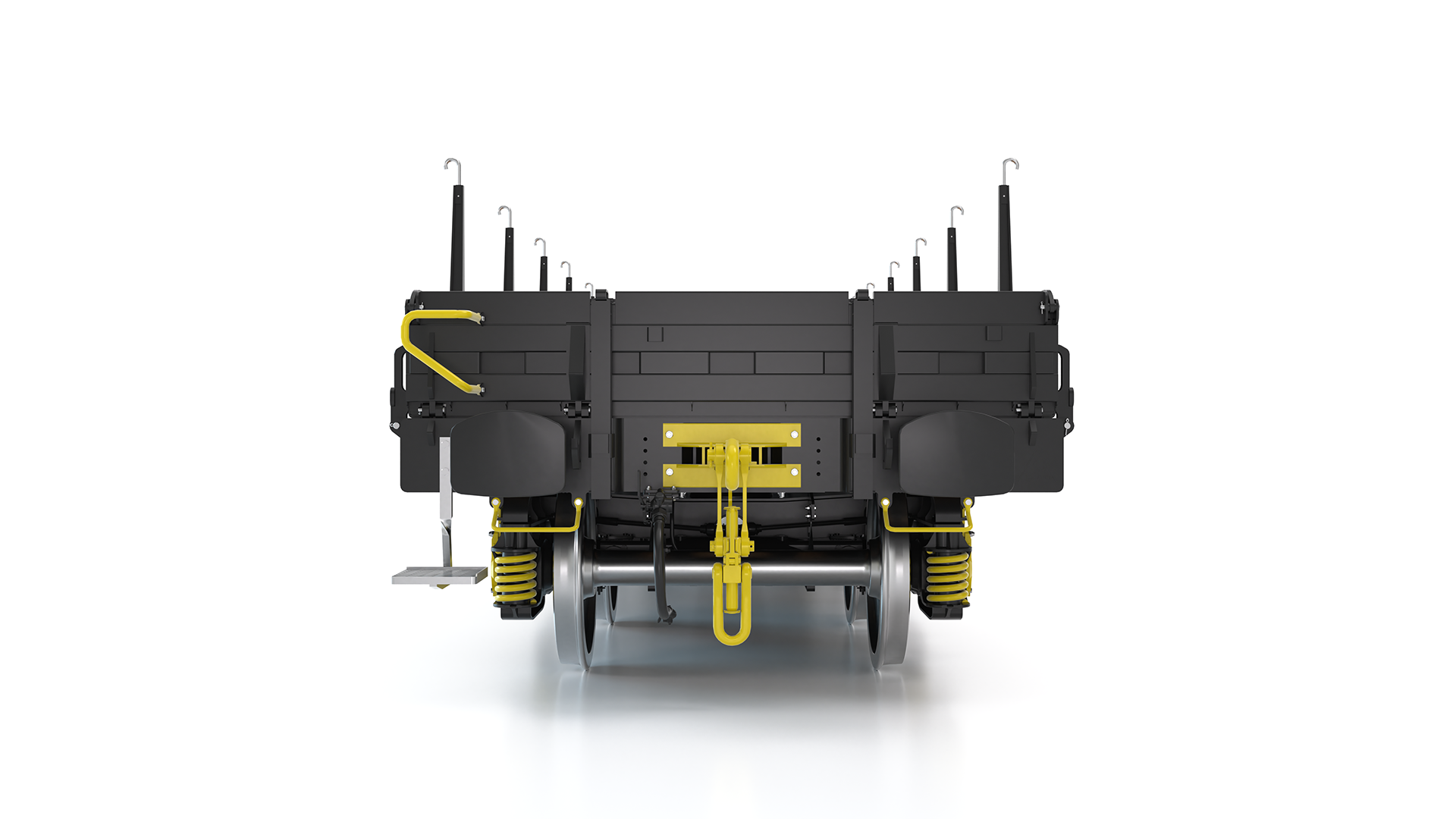

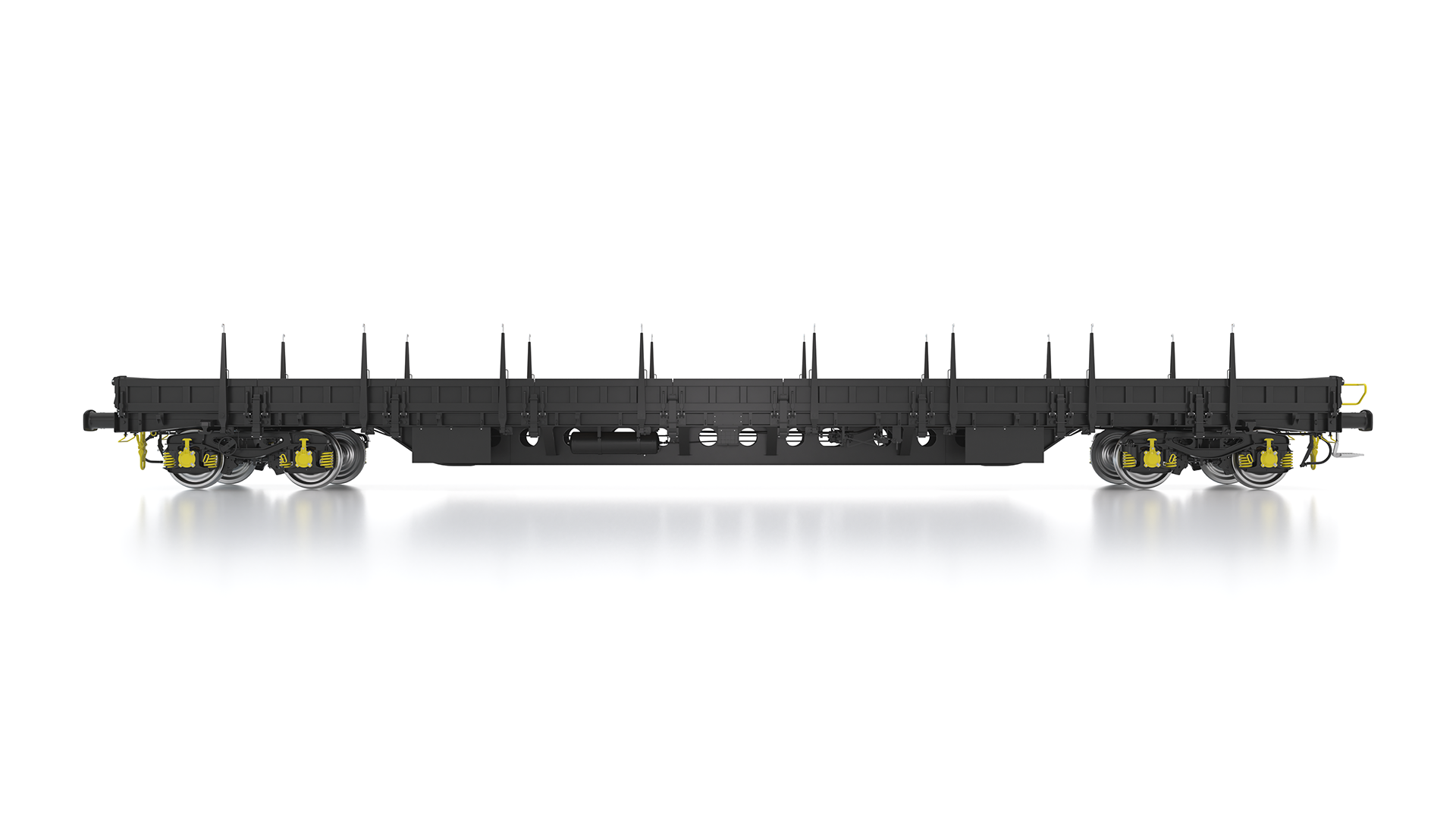

Rens
WAGON
HIGH PERFORMANCE
IN EUROPEAN STANDARDS
Designed for maximum safety and durability, our head beam bogie system delivers best-in-class performance in heavy-duty transport with 22.5 tonnes of axle pressure.
| Type standard design | Rens |
|---|---|
| Tare | 25 t ± 2% |
| Axle Load | 22,5 t |
| Maximum Load | 65 t |
| Track Gauge | 1.435 mm |
| Length buffer to buffer | 19.900 mm |
| Distance between bogie pivots | 14.860 mm |
| Loading length | 18.500 mm |
| Loading Width | 2.640 mm |
| Loading Surface | ~ 49m² |
| Stanchions | 16 adet mafsallı |
| Side walls | 18 adet mafsallı |
| Drop Ends | 2 adet mafsallı |
| Floor | Ahşap Zemin / Meşe 45 mm |
| Floor height (wrt to rail) | 1.235 mm |
| Minimal curve radius (Single vagon) | R 75 m |
| Brake system | Compact Brake System |
| Brake Configuration | KE-GP-A(K) / Knorr- Bremse-CFCB |
| Bogie Type | Y25Lsdi(f)-KC1 H Tipi |
| Wheelset | BA 303 (25 t) / ULT25 (25 t) |
| Wheel Diameter | 920 mm |
| Bogie Wheelbase | 1800 mm |
| Gauge | G1 |
| International usability | TEN-GE |
| Buffers type | Cat A 105 mm, 35 kJ (EN 15551) |
| Buffers type | 1500 kN (EN 15566) |
| Draw hook | 1500 kN (EN 15566) |
| Screw coupler | 1350 kN (EN 15566) |
Designed for maximum safety and durability, our head beam bogie system delivers best-in-class performance in heavy-duty transport with 22.5 tonnes of axle pressure.
