Laaiis
WAGON

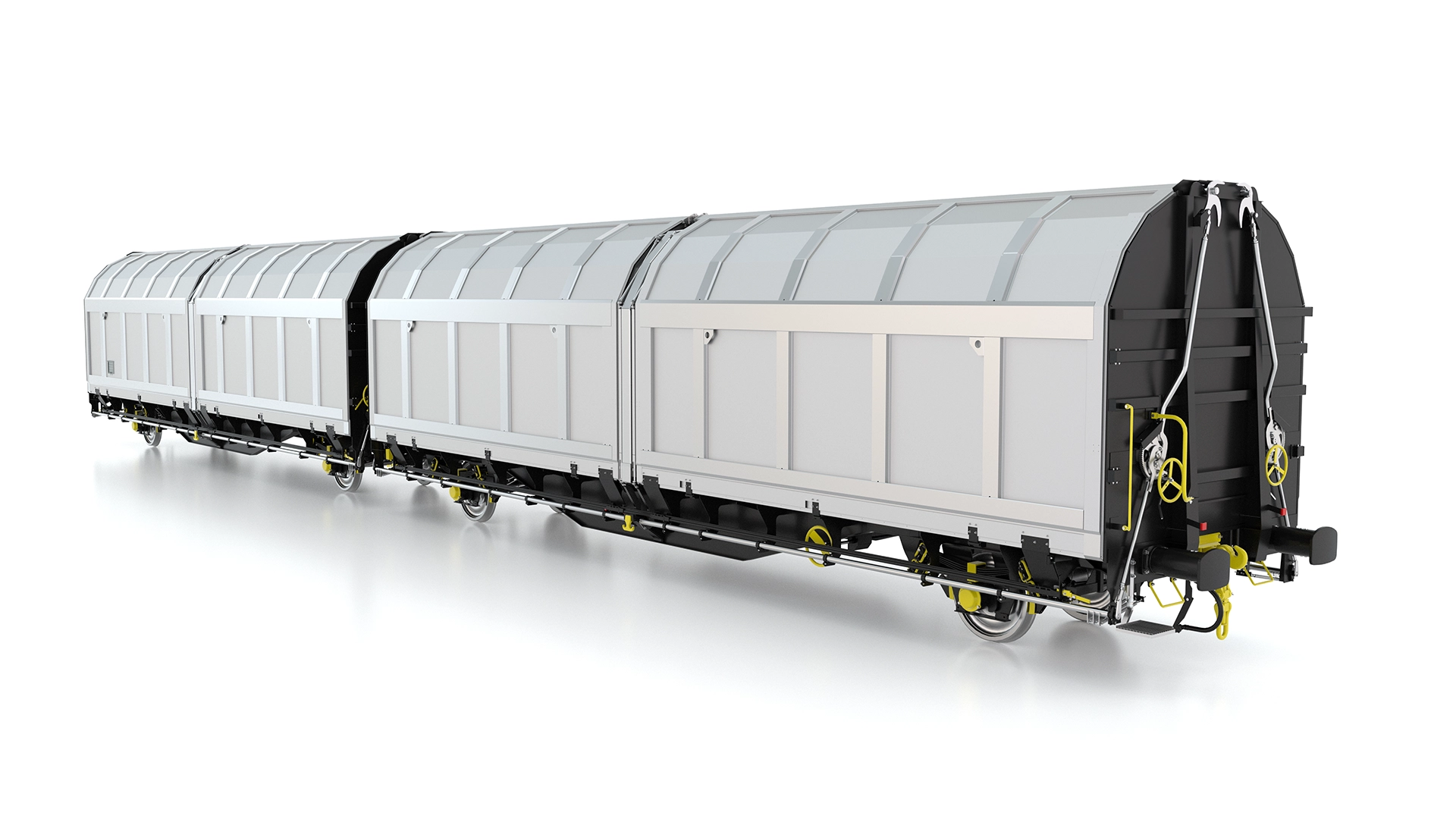

The Laaiis is a four-axle covered freight wagon with a 2×2 axle arrangement, designed for the transportation of paper rolls and other moisture-sensitive goods. The wagon is equipped with sealed aluminum sliding walls and is suitable for 100 km/h speed operation. The wagon meets the requirements of TSI WAG, EN and UIC standards.
TECHNICAL FEATURES
| Type standard design | Laaiis |
|---|---|
| Tare | 28,0 t ± 2% |
| Maximum Load | 62,0 t |
| Axle Load | 22,5 t |
| Track Gauge | 1.435 mm |
| Length buffer to buffer | 28.600 mm |
| Bogie Wheelbase | 2 x 9.700 mm |
| Loading length | 2 x 13.336 mm |
| Loading Width | 3.020 mm |
| Loading Surface | approx. 40,3 m² per chassis; approx. 80,6 m² total |
| Floor height above rail | 1.190 mm |
| Maximum Width | 3.148 mm |
| Maximum Height | 4.290 mm |
| Floor plate | Plywood 35mm |
| Lashing Devices | 20 pcs on longitudinal beam and 8 pcs on end walls per chassis, total 56 pcs |
| Side walls | 4 sliding per chassis, total 8 pcs |
| Drop Ends | 2 fixed per chassis, total 4 pcs. |
| Minimal curve radius (Single vagon) | R 35 m |
| Ferry ramp angle | 2°30’ – R 150 m |
| Brake system | 8d9b5f91 |
| Brake Configuration | KE-GP-A(K) |
| Brake block type | 2xBg Composite K Type |
| International usability | TEN-GE |
| Gauge | G1 |
| Number of axles | 2×2, total 4 axles |
| Wheelset | BA 303 (25t) or ULT (25t) |
| Axle Box | BA381 (22,5 t) |
| Wheel Diameter | 920 mm |
| Buffers type | Cat A 105 mm (EN 15551) |
| Buffers type | 1.500 kN (EN 15566) |
| Draw hook | 1.500 kN (EN 15566) |
| Screw coupler | 1.350 kN (EN 15566) |
| Centre coupling | 1.500 kN Short coupler in middle |
HIGH PERFORMANCE
IN EUROPEAN STANDARDS
Designed for maximum safety and durability, our head beam bogie system delivers best-in-class performance in heavy-duty transport with 22.5 tonnes of axle pressure.
LONG LASTING DESIGN
HIGH PAYLOAD CAPACITY
UIC AND TSI CERTIFIED
STANDARD LINE WIDTH
LOW MAINTENANCE COST
