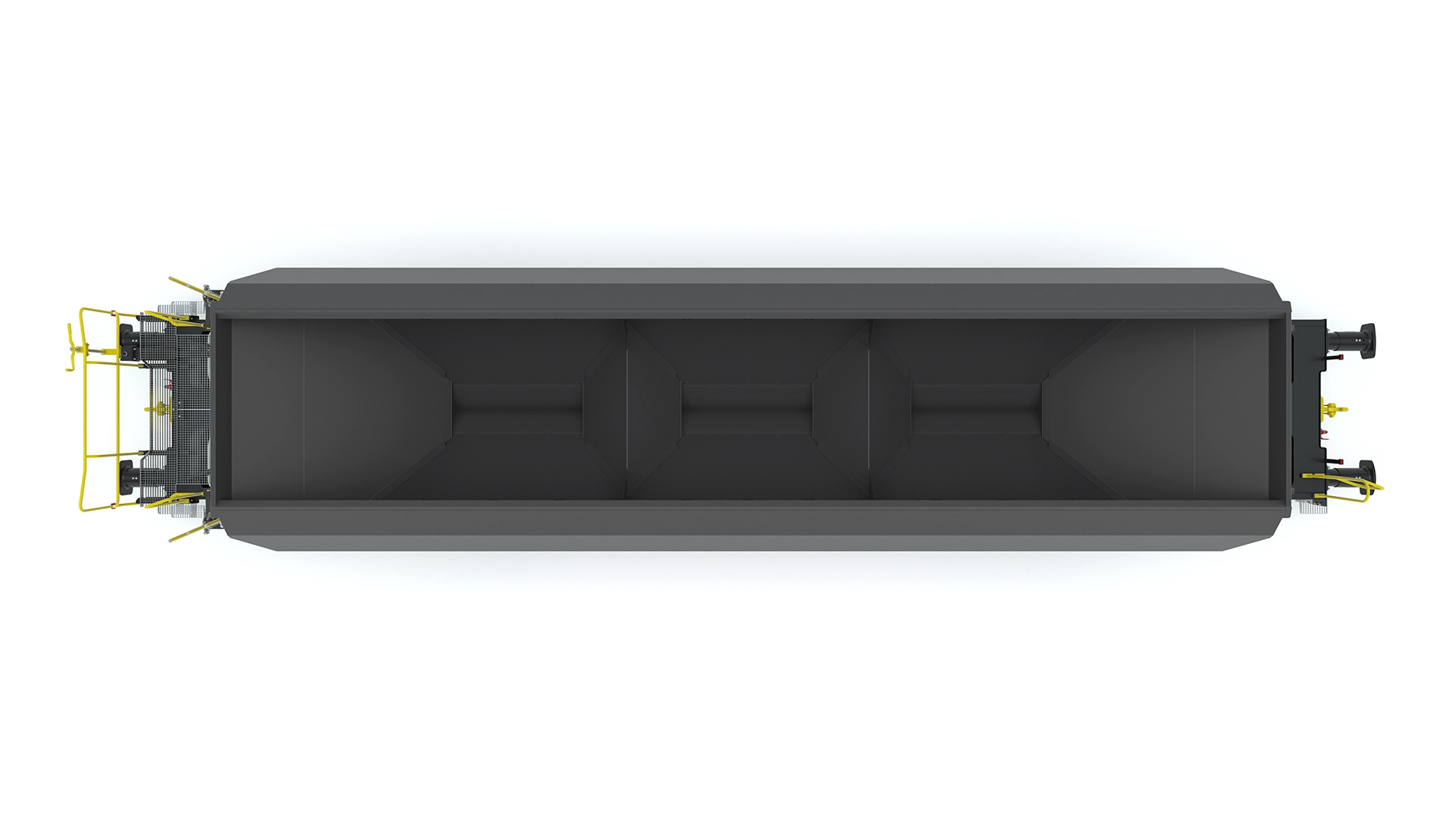

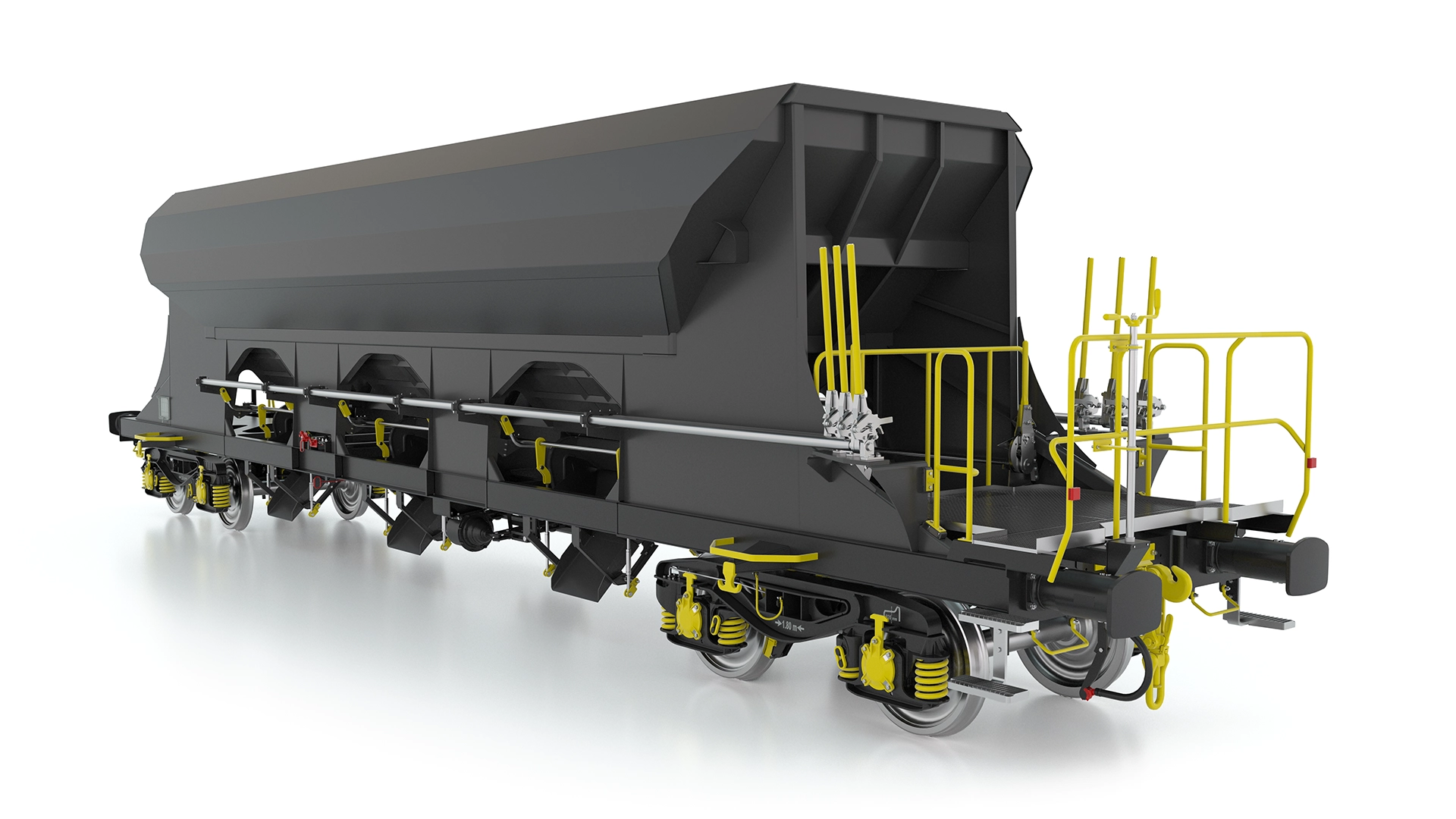

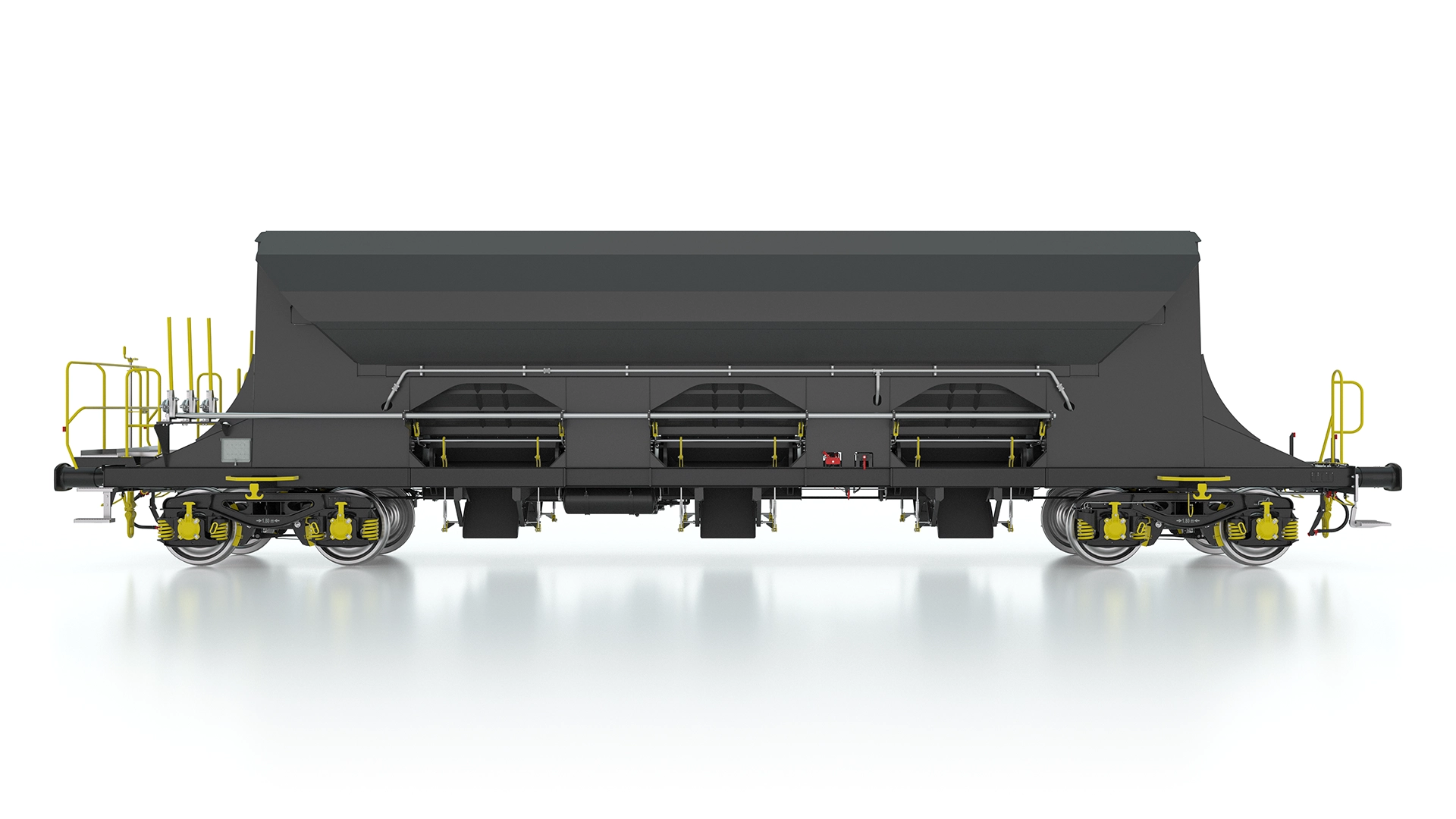

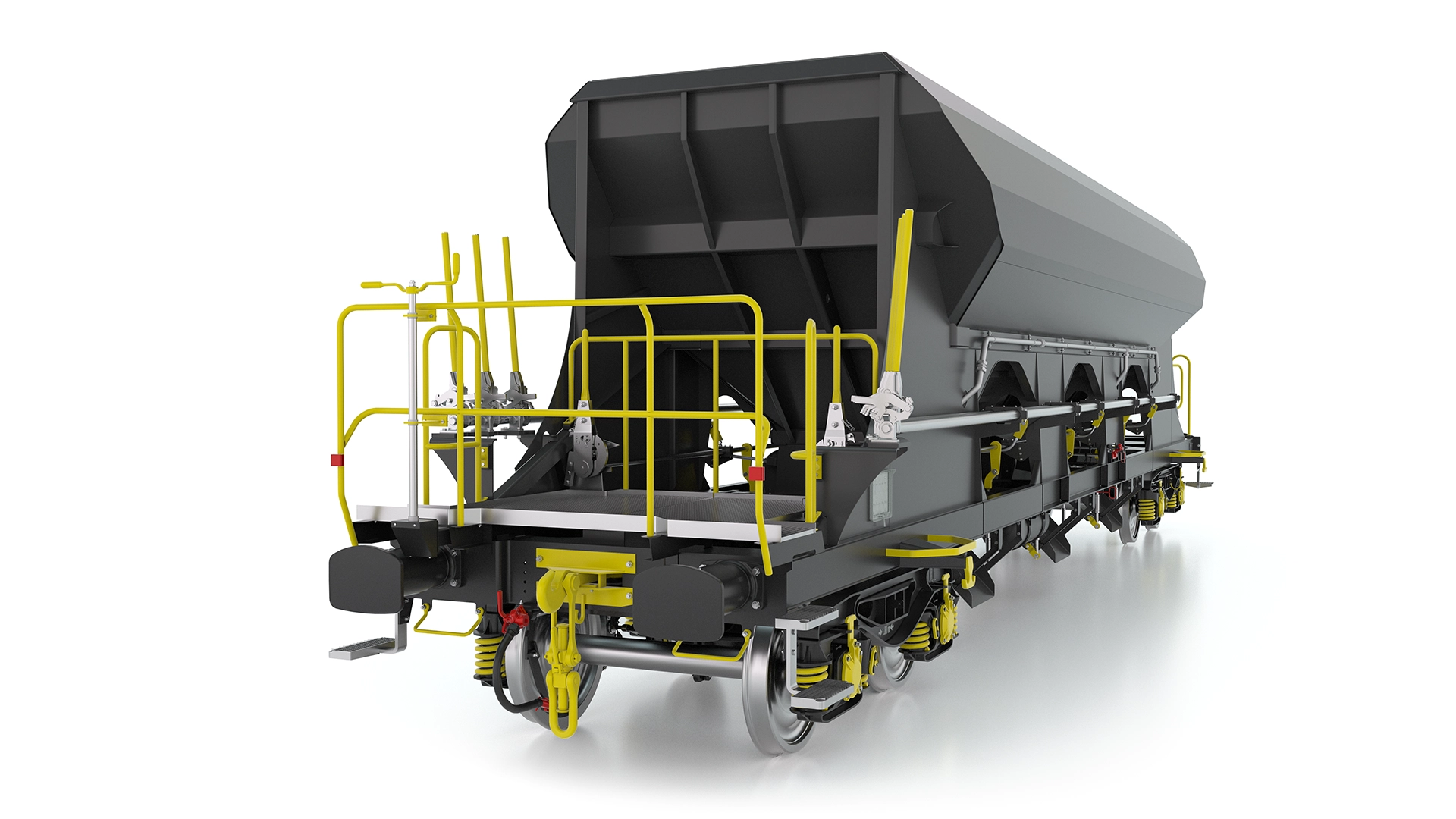

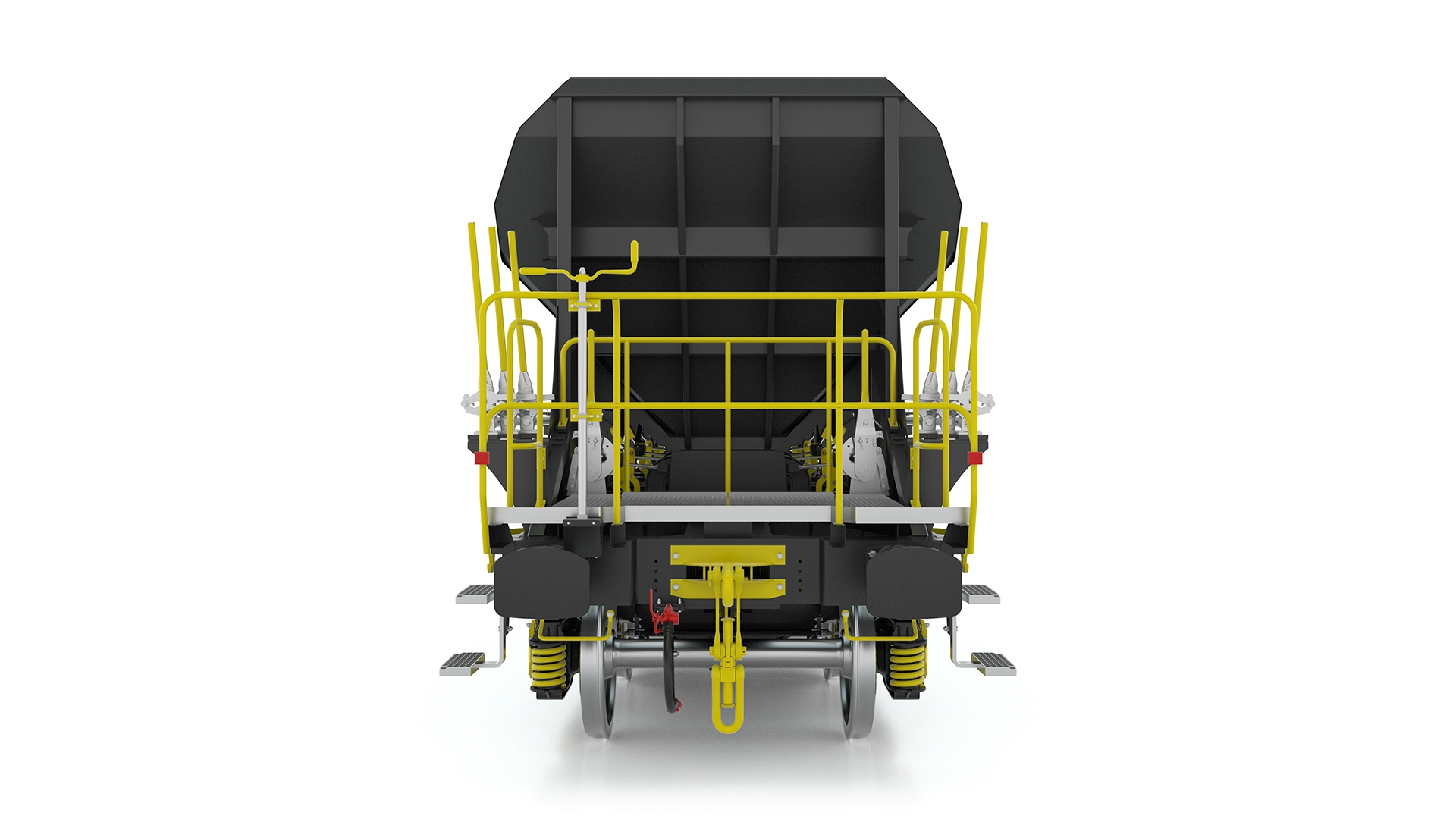

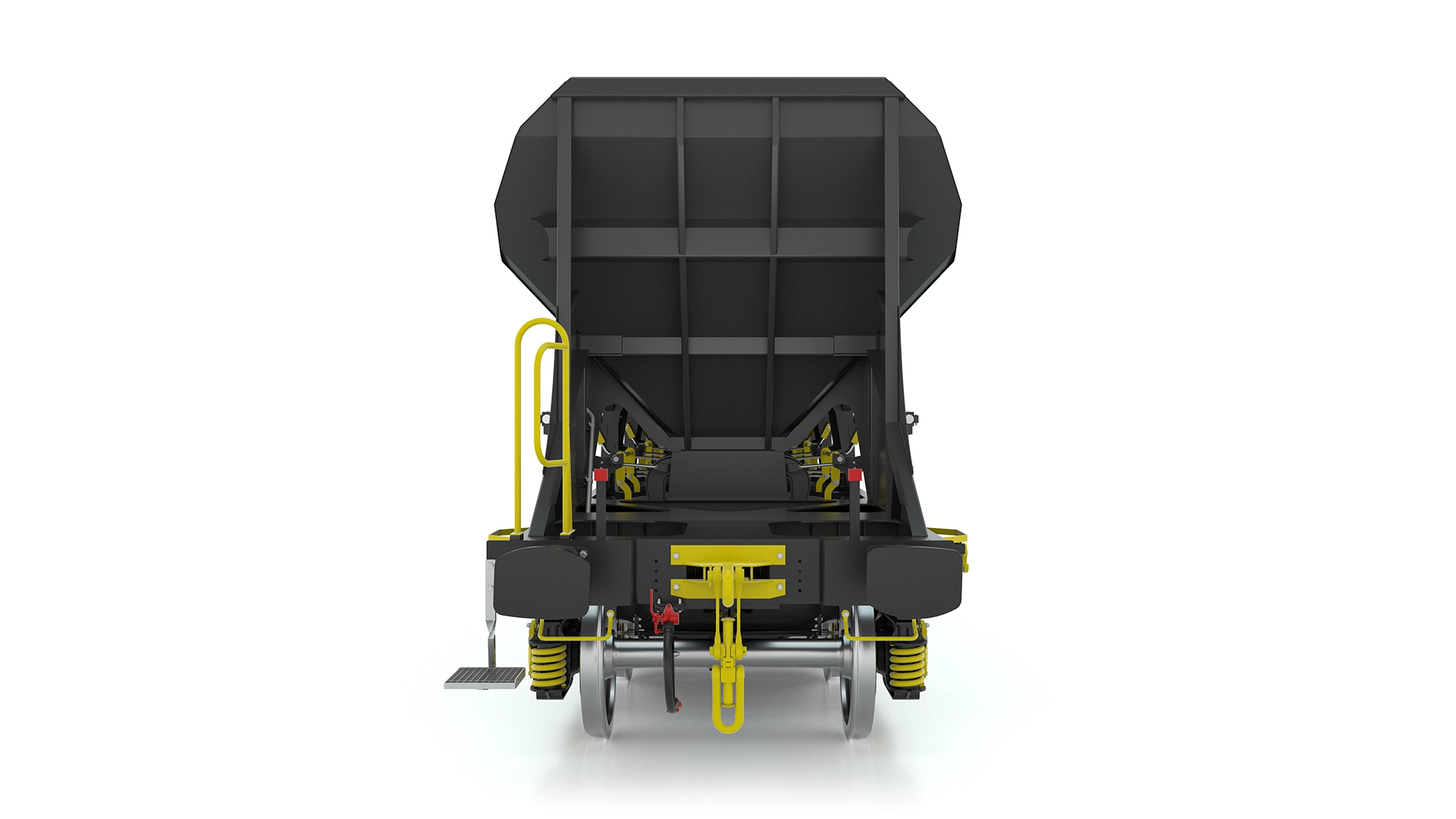

Facns 55 m³
WAGON
Our TSI approved 4-axle Facns type wagon has an axle load of 22,5t. This open bulk freight wagon is designed for suitable for transporting bulk goods that do not need to be kept dry transportation and is suitable for S brake regime. Total load capacity of approximately 68t. The total weight of the wagon, including its tare and maximum load, is 90t. The wagon design meets the requirements of TSI, EN, UIC standards and has TEN GE marking for traffic operation.
TECHNICAL FEATURES
| Type standard design | Facns |
|---|---|
| Tare | 22,0 t |
| Axle Load | 22,5 t |
| Maximum Load | 68 t |
| Track Gauge | 1.435 mm |
| Length buffer to buffer | 16.000 mm |
| Distance between bogie pivots | 10.960 mm |
| Inside length of hopper | 11.000 mm |
| Inside width of hopper | 1.952 mm |
| 2.811 mm | 2.811 mm |
| Loading volume | 55,0 m³ |
| Maximum Height | 4.000 mm |
| Maximum Width | 3.102 mm |
| Hopper Malzemesi | S500MC |
| Minimal curve radius (Single vagon) | R 75 m |
| Ferry ramp angle | 2°30’ – R 150 m |
| Brake system | Classic Brake System |
| Brake Configuration | KE‑GP‑A(K)Y25Ld‑K H Type |
| Brake block type | 1xBgu Composite K Type |
| International usability | TEN-GE |
| Bogie Type | Y25Ld‑K H Type |
| Gauge | G1 |
| Wheelset | BA 303 (25t) or ULT (25t) |
| Axle Box | BA386 (25 t) |
| Wheel Diameter | 920 mm |
| Bogie Wheelbase | 1.800 mm |
| Buffers type | Cat A 105 mm (EN 15551) |
| Buffers type | 1.500 kN (EN 15566) |
| Draw hook | 1500 kN (EN 15566) |
| Screw coupler | 1350 kN (EN 15566) |
HIGH PERFORMANCE
IN EUROPEAN STANDARDS
Designed for maximum safety and durability, our head beam bogie system delivers best-in-class performance in heavy-duty transport with 22.5 tonnes of axle pressure.
LONG LASTING DESIGN
HIGH PAYLOAD CAPACITY
UIC AND TSI CERTIFIED
STANDARD LINE WIDTH
LOW MAINTENANCE COST
